What we offer

We offer a complete production line of 17 machines,
single machines will also be sold.

Output of each machine:
approx. 20 kg brass or copper wool per hour

Power demand: 5,5 kW

Wire Diameter: 2.65 mm
Production Capacity:  80–100 kg/hour

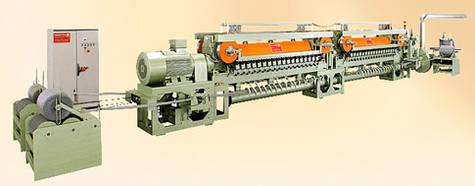

Aggregates: 2

• 8 worm gears
• 2 machine bases constructed of solid steel with foundations
• 1 continuously variable 75 kW main motor
• 1 electrical control cabinet for the main motor and suction fan
• 2 wool pullers
• 2 wool wrappers
• 1 suction unit for steel wool dust
• 1 wire straightening device
• 1 segmental wire wrapper with 2 coils for collecting residual wire
• 4 wool guide bars with a total of 52 wool guides
• 1 feed device for wire coils up to approximately 500 kg
• 1 wire puller
• 1 wire lubricating system with tank and pump
• 48 wire guides
• 48 blade holders

the tearing and rolling machine serves to steel wool strips on certain lengths to tear down and to roll

• It can be produced pads of 6 - 50 g and 50 - 120 mm wide be produced
• the machine is equipped with a clutch-brake combination, for exact tearing of the wool strip
• the roll machine is fixed at the tearing machine, so the machine can be taken in / out of operation
• the drive is over 2.2 kW motor. Over regulating wheels can the speed of the machine to be continuously adjusted.
• the roll machine is equipped with a wear-resistant rubber band.

Technical data / Tearing and Rolling Machine

Roller width:                   50 - 120 mm
Roller weight                  6 - 50 g
Output:                           80 - 120 pcs / min
Power consumption:       2.2 kW
Operator:                        1
Total machine length:    3.20 m
Total machine weight:   850 kg

Production: 200Kg/h
Power consumption: Kw 25; 50 Hz
Floor Space required: 2,10 x 2,00 x 2,80 m
Weight: 1200kg

The steel wool chopper we developed has a special suction system that prevents fires.
It is used to shred steel wool, copper and aluminum wool into the desired powder size.
The steel wool can be fed directly from the steel wool machine or through coiled bobbins.

The condition is as good as new.

Automatic Electrode Unloading System

The automatic unloading system is positioned downstream of the conveyor belt and consists of the following components:

• Intermediate conveyor (2 m long) serving as the infeed conveyor
• Machine body with integrated frame lifting system and paternoster unloading mechanism
• Machine control system

Note: The furnace is loaded manually.
